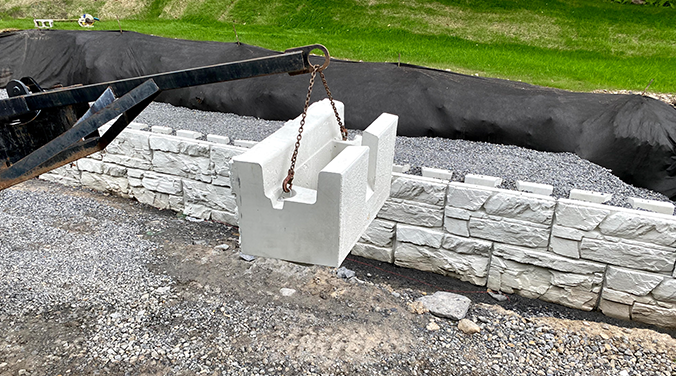

Gravity Walls
MagnumStone® Gravity Retaining Wall Extenders replace Geogrid reinforcements by using a tongue-and-groove concrete system that meets or exceeds the demands of engineers. This system reduces the massive footprints demanded by cantilevered traditional gravity retaining walls and gives developers and owners greater use of land above the wall.

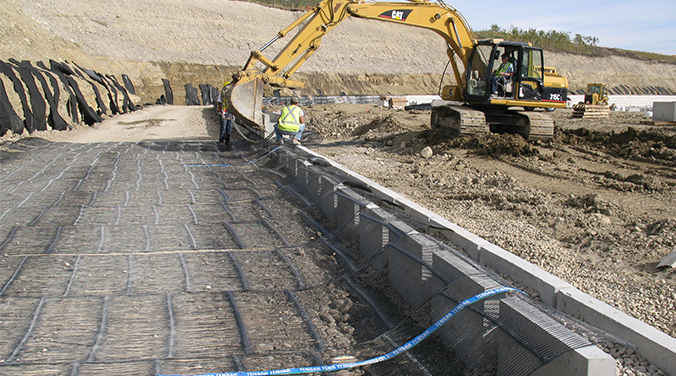

Geogrid Walls
Geogrids are used to reinforce the soil mass behind the MagnumStone® units to create tall retaining wall systems. Wall structures that may require geogrid reinforcement to resist the increased pressures behind the wall include parking lots, roadways, water applications or positive slopes abovell.

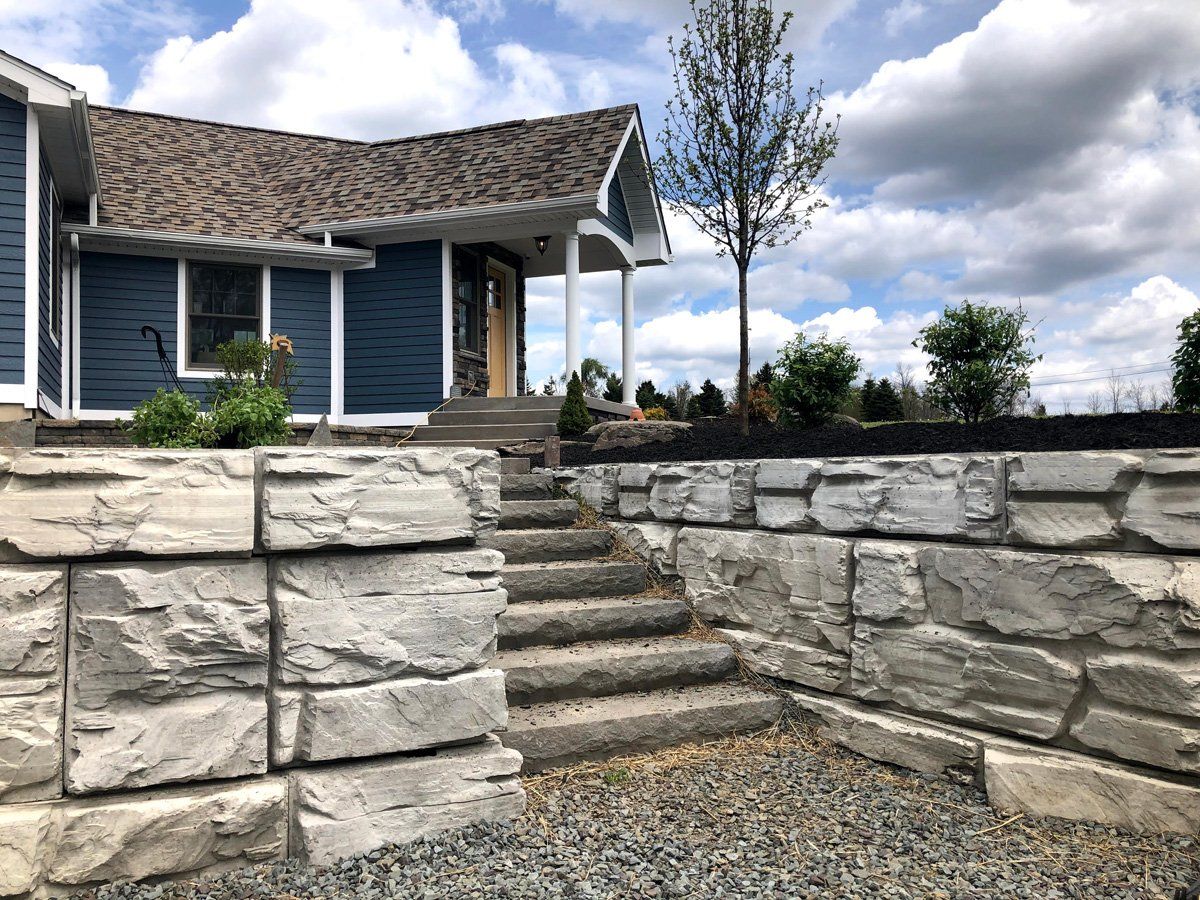

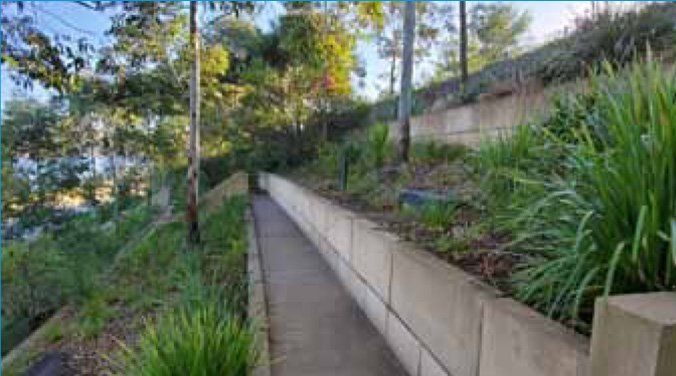

Terraces with Planters
The MagnumStone® retaining wall provides a large vertical and horizontal hollow core. The light weight and large size units allow wall designers the flexibility of creating many solutions without environmentally costly side-effects. The hollow core provides a plantable retaining wall pocket within the retaining wall system.

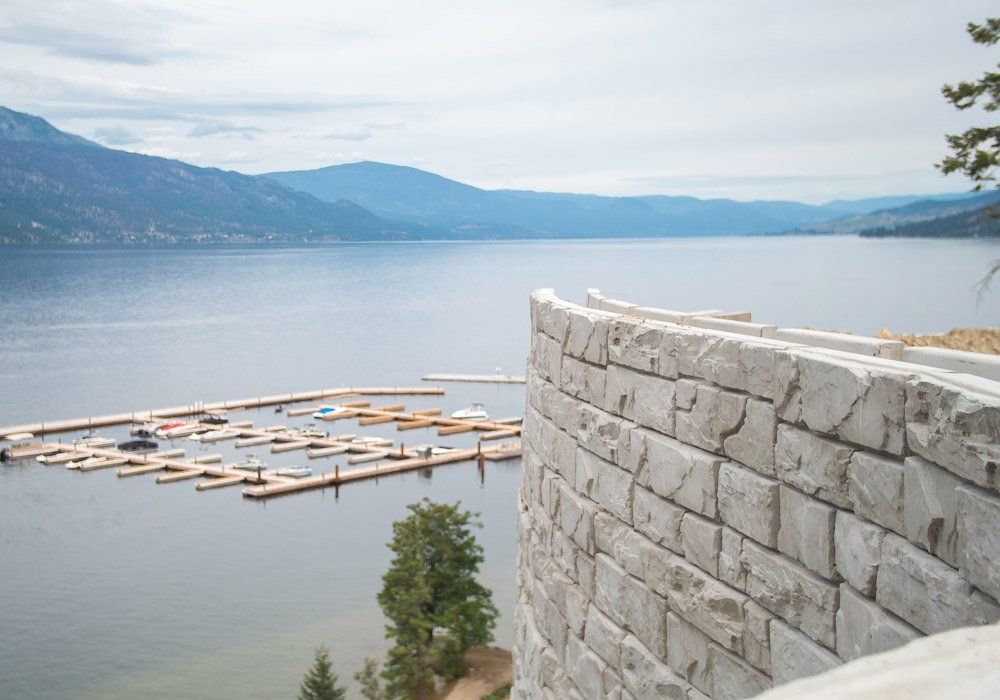

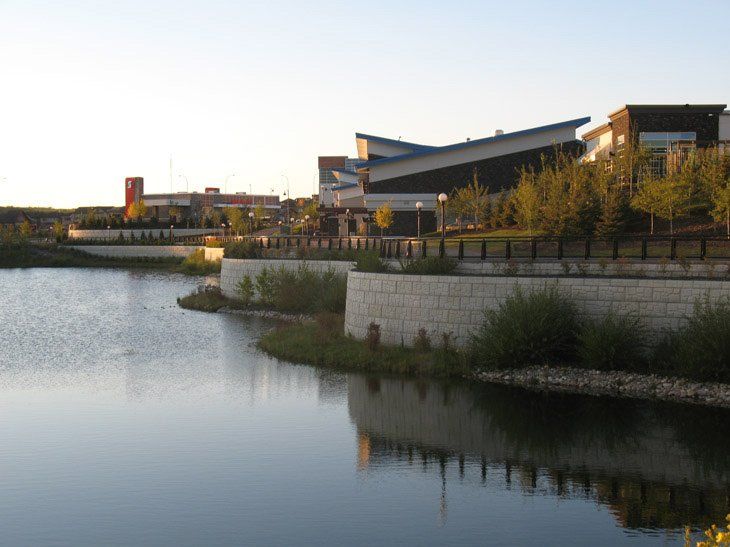

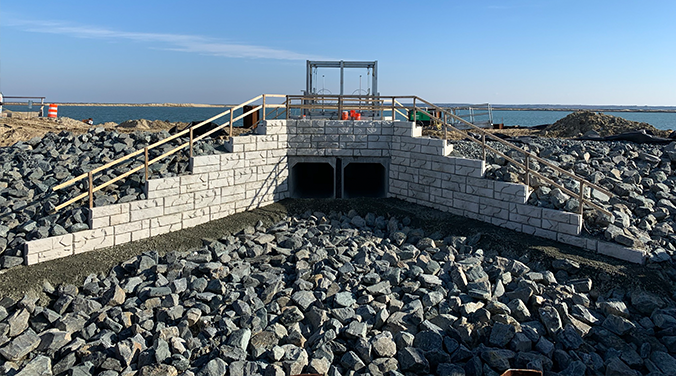

Water applications
The hollow core allows for vertical internal drainage, minimizing the effects of hydrostatic pressures behind the wall. Wet-cast MagnumStone® units provides a durable, 4000 psi (27.5 MPa) concrete that is resistant to freeze-thaw degradation in areas of repeated freezing and thawing in saturated conditions.

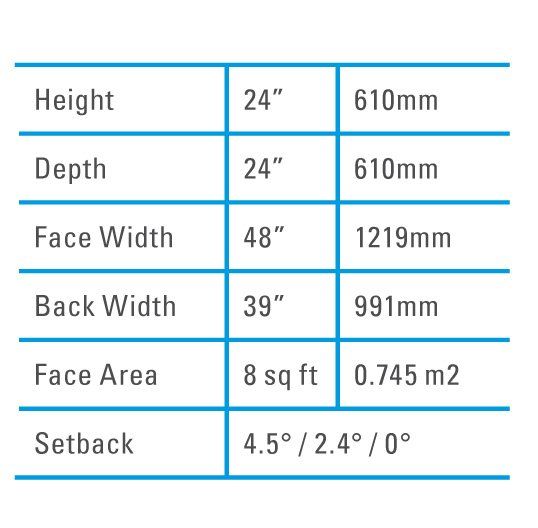

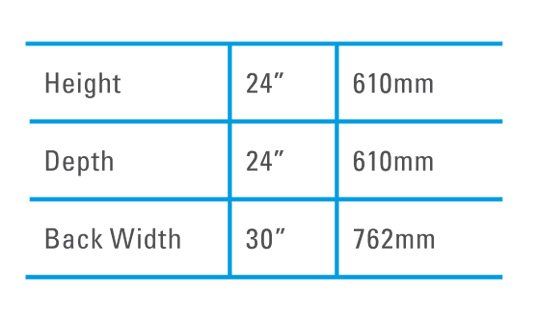

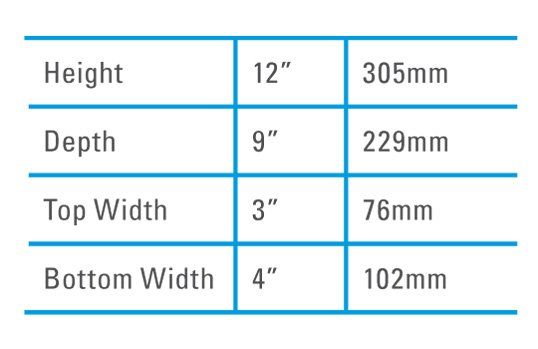

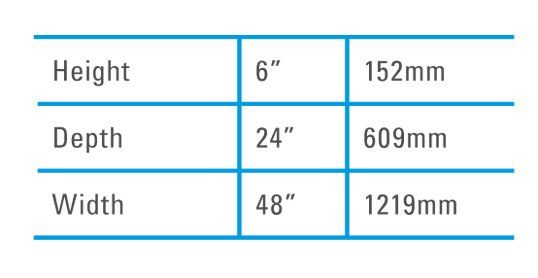

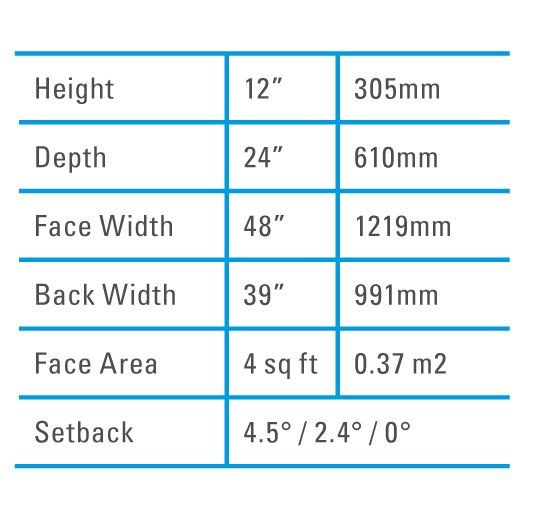

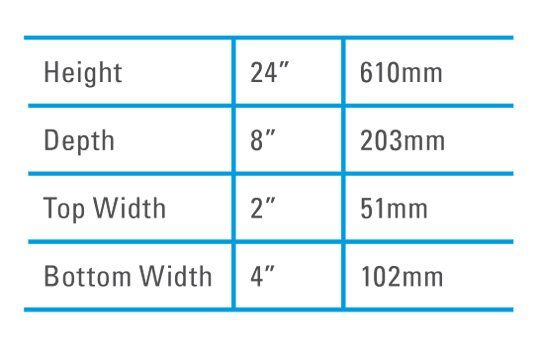

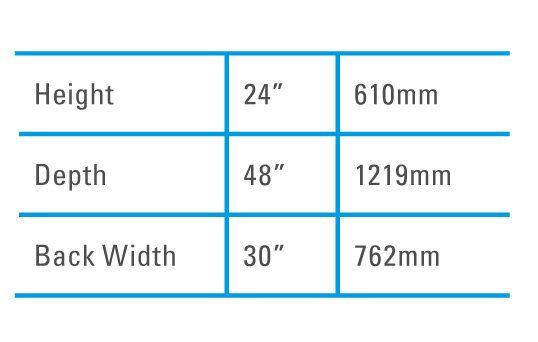

Unit Specifications

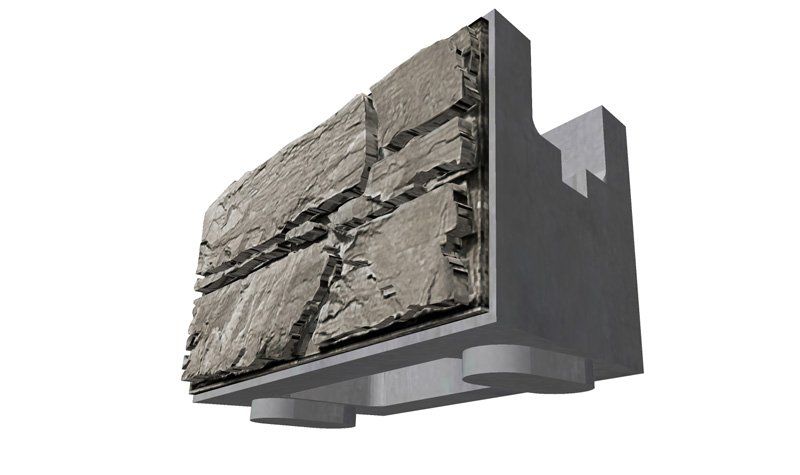

STANDARD
1370 lbs (621 kgs)

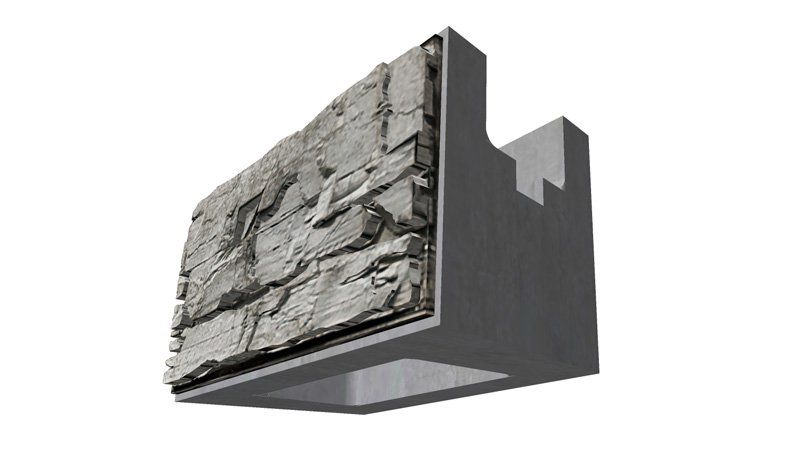

STANDARD BASE
1345 lbs (621 kgs)

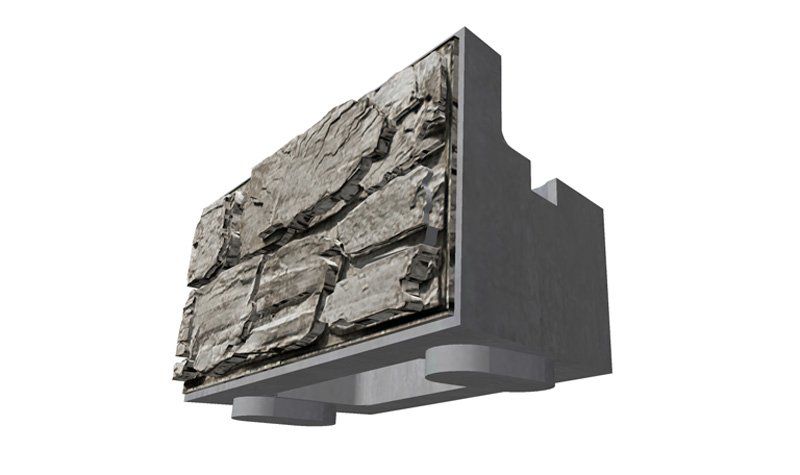

STANDARD TOP
1220 lbs (553 kgs)

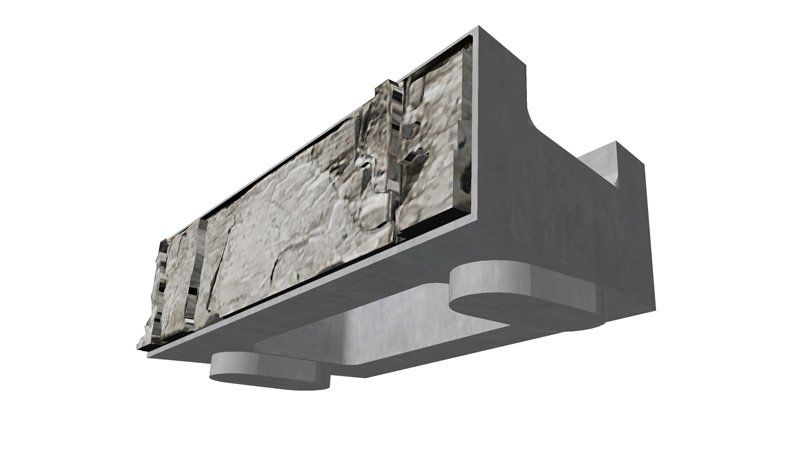

HALF HIGH
750 lbs (340 kgs)

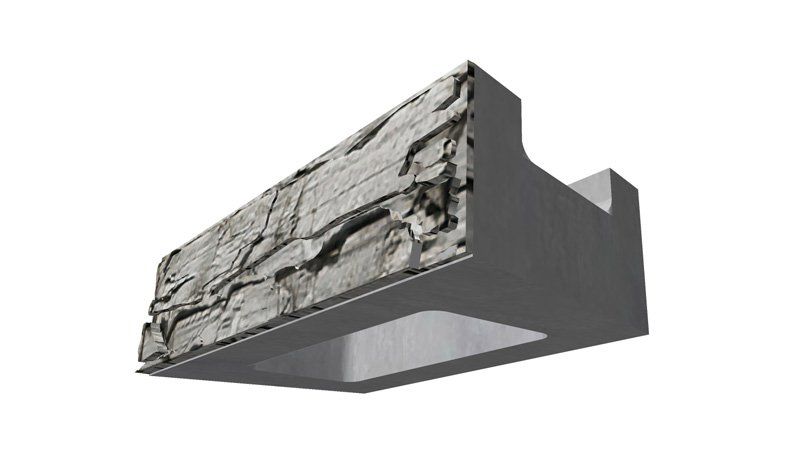

HALF HIGH BASE
725 lbs (328 kgs)

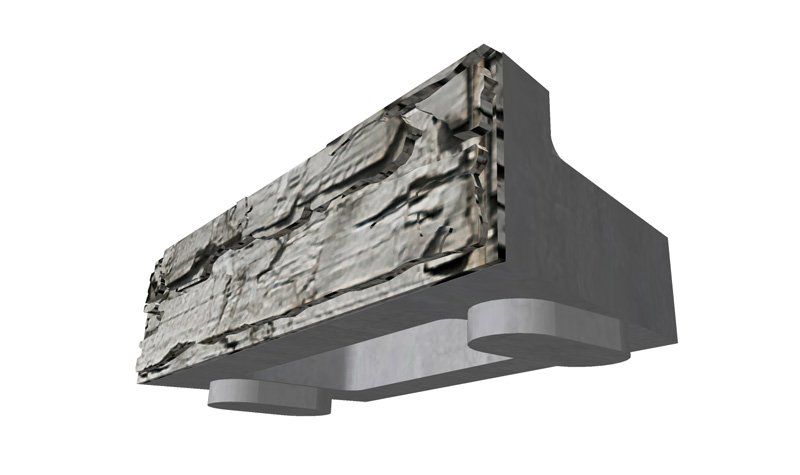

HALF HIGH TOP
680 lbs (308 kgs)

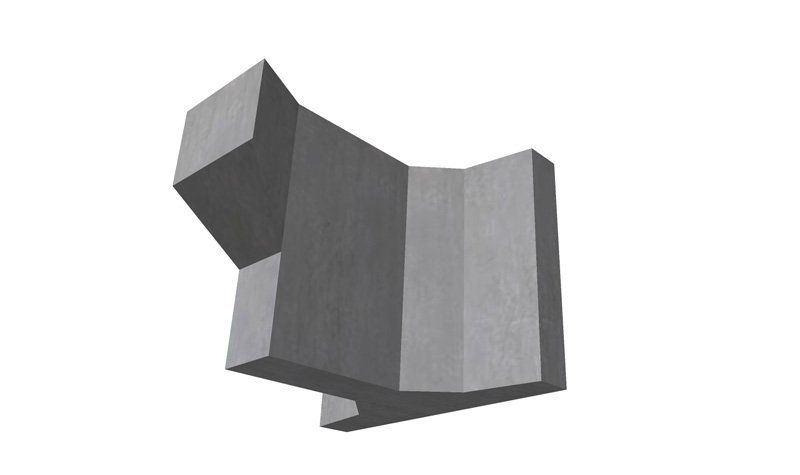

2FT EXTENDER
520 lbs (236 kgs)

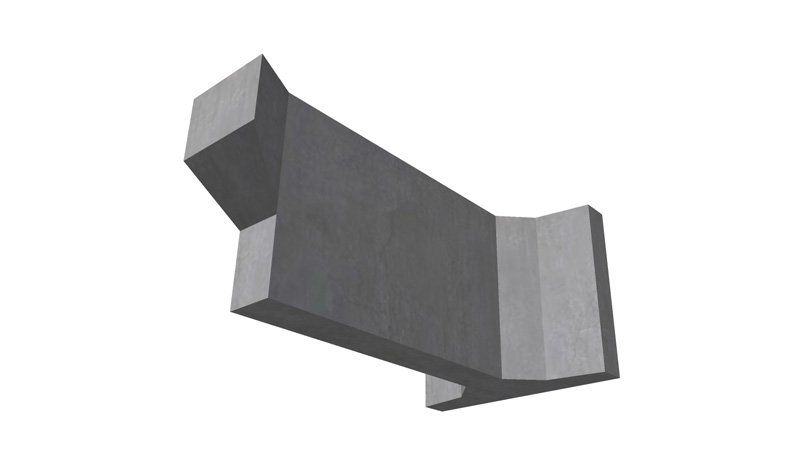

4FT EXTENDER
820 lbs (372 kgs)

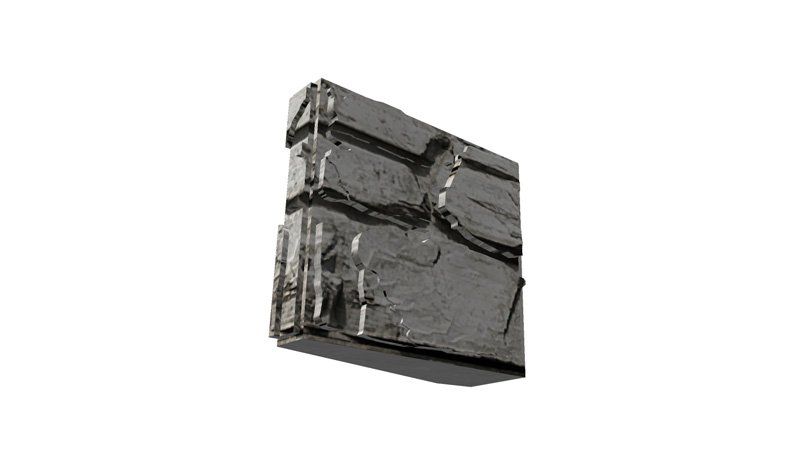

CORNER/END
340 lbs (154 kgs)

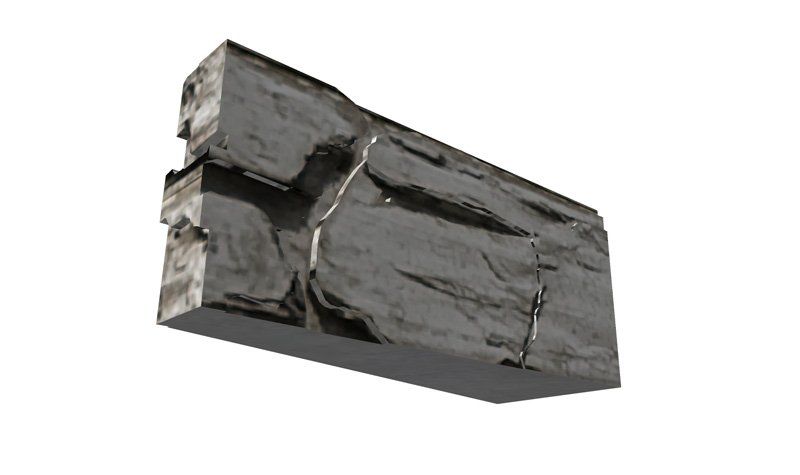

HALF HIGH CORNER/END
170 lbs (77 kgs)
STEP/CAP
290 lbs (131 kgs)
